Q-Sun System
Meet the “Q-Sun System” - a modular, intelligent lighting solution by Adiosun
SEEMINGLY
ordinary lighting?
Find out how easily you can enrich the interior of your home, hotel, or office space with the help of Q-Sun lighting.
Discover the positive effects of white light warmth adjustment – not only on your comfort, but also your health.
Q-Sun System
A REVOLUTION IN LIGHTING!!!

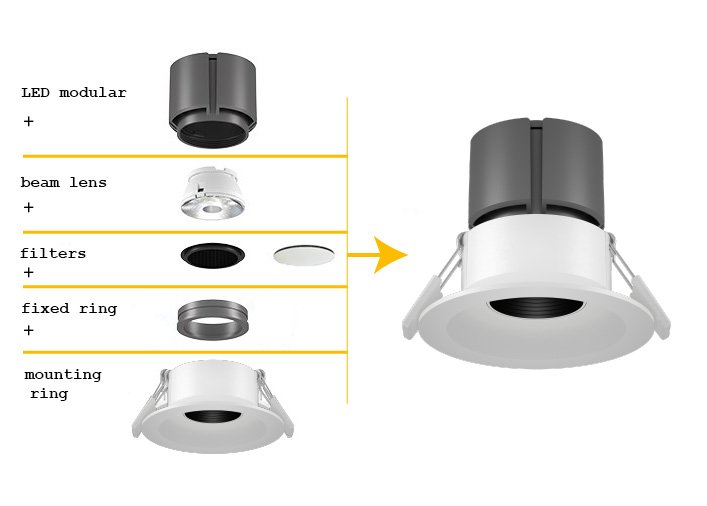

Assemble your own luminaire to your liking
The Q-Sun System luminaire is a modular solution allowing the user to quickly exchange its components.
The basis of our luminaire is a light source integrated with an aluminium casing which doubles as a radiator.
Adjustable optics enable you to achieve the required focal properties of the lamp.
The individual filters which can be installed in front of the light source affect the quality of lighting, e.g. its hardness.
Thanks to an entire range of designer mounting rings yor luminaire can look just as you desire.
BUT LET US START AT THE BEGINNING…
The Q-Sun light source
A high-quality LED light offering exceptional parameters and possibilities.
15W with direct-current stabilisation and full-range power adjustment guarantees a powerful beam of light.
Full-range control over power and temperature
Why limit yourself to ordinary lighting? The Q-Sun light source offers complete control over both the power (0 – 100%) and the warmth of white light.
There are two types of light sources available:
2700K – 6000K – warm to cold light range
1800K – 4000K – very warm to neutral light range
BEAUTIFUL DURING THE DAY, HEALTHY IN THE EVENING
Take care of your health thanks to the Adiosun Q-SUN System
Did you know that the temperature of light significantly affects your well-being?
The Q-Sun System light bulb offers a very wide range of warmth control, starting at 1800K. This colour, similar to candlelight, is free of blue light and most of green light. Using such light before sleep supports the natural secretion of melatonin. It leads to improved sleep quality, no nocturnal awakenings, better regeneration and increased energy over the course of the day, as well as less eye strain.
During the day, on the other hand, the light bulb may emit neutral or even cold light (depending on the model). The colour temperature may be tuned manually or through integration with smart home systems.
Q-SUN Radiator
Perfect cooling system
Thanks to its well-designed, aluminium body and special ribbed structure the Q-Sun System light bulb meets the most stringent cooling standards, ensuring its longevity.

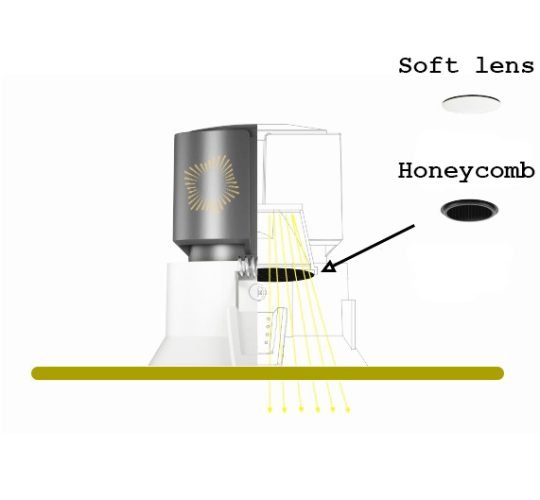

Interchangeable light filters
Additional filters which may be installed on the Q-Sun light bulb make it possible to control the beam.
Install the soft light filter in order to diffuse the edges of the lighed area.
Install the honeycomb filter to further reduce blinding when looking directly at the light source.
Interchangeable optics
The Q-Sun System allows you to change the lens without any tools. You will be able to quickly adapt the lighting angle to your individual needs.
An entire range of mounting rings
Design your lamp with one of many professional mounting rings. Each ring is an aluminium casting with a powder coating.
You decide on the…
APPEARANCE AND PARAMETERS OF YOUR LUMINAIRE
Vertical and horizontal adjustment
Select rings enable 355-degree rotation and up to 20 degree lamp angle regulation.
An incredible solution for smart buildings as well as standard electrical installations.
Q-Sun lighting control
Normally, Q-Sun System lamps are controlled via the DALI protocol using a dedicated DALI power source unit. However, depending on your needs, we can also provide you with ZigBee and Z-Wave protocol-appropriate power source units. This makes Q-Sun a very universal lighting solution, primarily in the context of smart building automation systems.
Switch-based control
Our DALI power source units also allow for pulse control. Which means that the user may regulate their power, and even colour temperature, using a simple monostable wall switch.
A single press of the switch button turns the lamp on and off.
Holding it alternately decreases or increases the brightness.
A double click switches between power control and colour temperature control modes.
Dimensions
The dimensions of the Q-Sun light bulb follow the MR-16 standards.
Perfect for you home, office, hotel…
The Q-SUN System is a great solution for every space. The strength of its light and the adjustable beam angle make it fitting for any height. The variable temperature of white light lets the user adjust it to all conditions. The very well-designed cooling system and high-quality LED light source ensure reliable performance of Q-SUN lamps over many years – supported by a five-year warranty.
Q-Sun System light source technical parameters
| Model | Q-SUN 506-1840 | Q-SUN 506-2760 |
|---|---|---|
| POWER | 15W | 15W |
| Colour temperature (CCT) | 1800K - 4000K | 2700K - 6000K |
| Maximum control current | 500 mA | 500 mA |
| Conduction voltage | Min. 35V / Typ. 37V / Max. 39V | Min. 35V / Typ. 37V / Max. 39V |
| Correlated Colour Temperature – warm light | Min. - 1800K / Typ. 1850K / Max. - 1900K | Min. - 2700K / Typ. 2750K / Max. - 2800K |
| Correlated Colour Temperature – cold light | Min. - 3900K / Typ. 4050K / Max. - 4200K | Min. - 5900K / Typ. 6050K / Max. - 6200K |
| Luminous flux – warm light | Min. - 1150lm / Typ. 1300lm | Min. - 1300lm / Typ. 1500lm (?) |
| Luminous flux – cold light | Min. - 1900lm / Typ. 2100lm | Min. - 2300lm / Typ. 2500lm (?) |
| Beam angle (standard) | 24 deg. | 24 deg. |
| Beam angle (adjustable - interchangeable lens) | 15 / 24 / 36 / 50 deg. | 15 / 24 / 36 / 50 deg. |
| Power factor | >0,9 | >0,9 |
| CRI | 90+ | 90+ |
| IP | 20 | 20 |
| Mass | 270g | 270g |
| Dimensions | 62mm (dia) / 600mm (ht) | 62mm (dia) / 600mm (ht) |
| EAN CODE | 5904533845211 | 5904533845228 |
